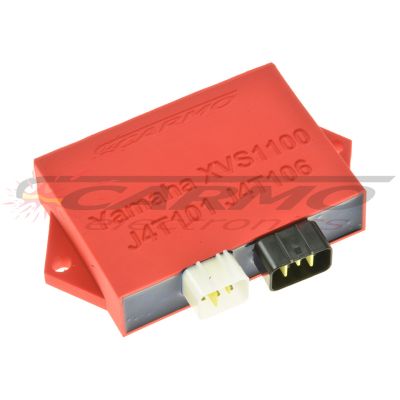

Improved Yamaha XVS1100 Dragstar CDI-box igniter J4T101 / J4T106
3 Year warranty
Plug&Play
For:
Yamaha XVS1100 Dragstar CDI
Yamaha XVS 1100 Dragstar CDI
Yamaha XVS1100 V-star CDI
Yamaha XVS1100 Vstar CDI
Yamaha XVS1100 Dragstar Classic CDI
Yamaha XVS 1100 Dragstar Classic CDI
On the box:
J4T101 / 5EL-00
J4T106 / 5EL-10
Other names:
EC Ignitor, brain, ignition module
CDI, ECU, ECM computer, Black Box, Ignitor
ignition control module, spark box
Ignition Spark Control Module
CDI Ignition
Your bike will perform better with this advanced ignition unit from Carmo electronics!
Improved version from this well known ignition unit.
What's improved/better compared to the original unit:
- The unit is protected against overvoltage (defect voltage regulator/rectifier, bad battery, ...).
- The unit is protected against a defect ignition coil and reverse battery connection.
- The unit has a acceleration correction, when the bike rev's up the ignition delay will be a bit more (in proportion). Smoother acceleration.
- The unit uses digital technique, so it is more accurate and temperature changes have no influence, the curve is also optimized for more power.
- When the battery voltage changes the unit will change the control to the ignition coil so the spark power will stay the same.
- Start mode, during engine start the unit will give more current to the ignition coil for a faster start.
Team-Carmo
